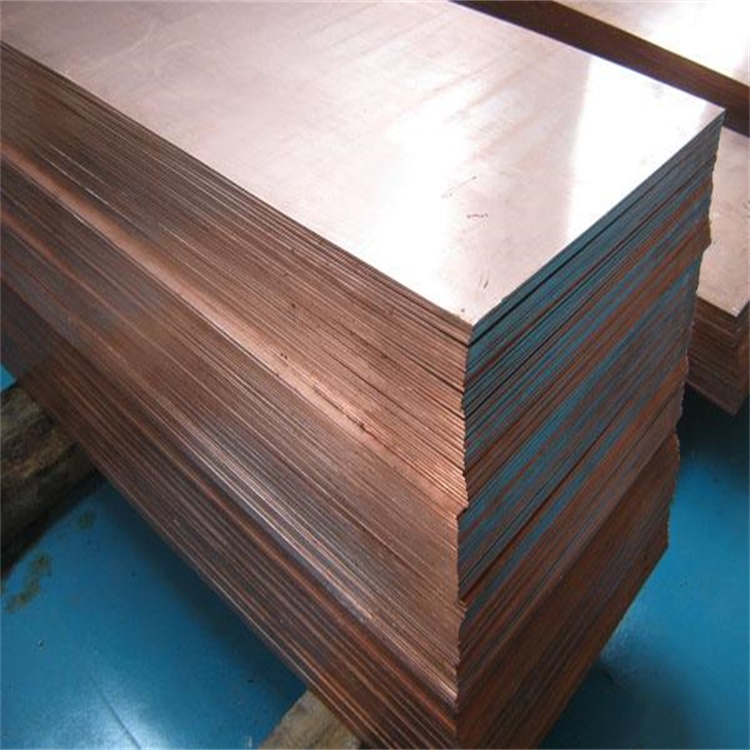

    Customized 99.9% Pure Flexible Copper Sheet 2mm 3mm 4mm Polished Surface

    Description:
    Type: Copper Sheets
    Application: Air Condition or Refrigerator, Water Tube, Water Heater, Oil Cooler Pipe
    Material: Red Copper
    Shape: Plate
    Alloy: Alloy
    Color: Red

    parameters

    Product Name Copper Plate Sheet
    Material Copper
    Standard ASTM, AISI, JIS, DIN, GB, EN
    Grade

    C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,

    C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,

    C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000,

    C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800,

    C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200


    T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1,

    Shape Flat plate
    Temper O-H112; T3-T8; T351-T851
    Size thickness 0.3mm~100mm; Width 50mm~2500mm; Length 1000mm~12000mm
    Surface Mill finish, polished, anodizing, brushing, sand blasting, powder coating,etc
    Payment terms T/T,L/C
    Price terms CFR,FOB,CIF,Ex-work,CNF
    Application 1)Further making utensil.
    2)Solar reflective film
    3)The appearance of the building
    4)Interior decorating:ceilings,walls,etc.
    5)Furniture cabinets
    6)Elevator decoraction
    7)Signs,nameplate,bags making.
    8)Decorated inside and outside the car
    9)Household appliances:refrigerators,microwave ovens,audio equipment,etc.
    10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc.
    Package Standard export seaworthy package or as required.
    Contact If you have any question,please feel free to contact me.

    introduction


    The main production material of copper plate is red copper, the use of red copper: much more widely than pure iron, 50% of the copper is purified by electrolysis every year for pure copper, used in the electrical industry. The copper mentioned here should be very pure indeed, containing up to 99 copper. More than 95% is necessary. Very small amounts of impurities, especially phosphorus, arsenic, aluminum, etc., will greatly reduce the conductivity of copper.

    It has good mechanical properties, good plasticity in hot state, good plasticity in cold state, good machinability, easy fiber welding and welding, corrosion resistance, but easy to produce corrosion rupture, in addition to cheap price, is widely used as a common brass variety.

    ● Mechanical properties:

    Tensile strength: ≥315

    Elongation: ≥30

    Note: tensile properties of other plates at room temperature except those used for making locks and clocks

    Sample size: diameter > 2.0 ~ 4.0

    ● Heat treatment specification: hot working temperature 650 ~ 850℃; Annealing temperature 600 ~ 700℃; Low temperature annealing temperature to eliminate internal stress 270 ~ 300℃
    No. 0 oxygen free copper TU0 C1011 -- C10100 C110

    No. 1 Anaerobic copper TU1 C1020 OF Cu C10200 C103

    No. 2 oxygen-free copper TU2 C1020 OF Cu C10200 C103

    Copper T1 C1020 OF Cu C10200 C103

    Copper T2 C1100 SE-Cu C11000 C101

    Copper Number three T3 C1221 -- -- --

    No. 1 phosphorus deoxidized copper TP1 C1201 SW-Cu C12000 --

    Phosphorus ii deoxidized copper TP2 C1220 SF-Cu C12000
